Характеристики

Condition: New

Type: Jet-Grouting Drilling Rig

Power Type: diesel,electric

Usage: Soft soil reinforcement,Waterproof curtain ,anti-floating anchor

Voltage: 380V

Power: Diesel :82,Electric:45+15

Dimension(L*W*H): 5800*2060*2414MM

Weight: 10000kg

Warranty: 1 Year

After-sales Service Provided: Engineers available to service machinery overseas

Сертификация: ISO9001

Jet-grouting: Single, double, triple

Hole depth(m): 50

Rod diameter(mm): 73,89

Hole angle(Â°): 0~90

Rotary speed(r/min): 0~20,25,50,60,125

Max torque (N.m): 7000

Power head feeding stroke (mm): 4000

Stake diameter (mm): 400~600,600~1200, 800~1600

Length of Joint pipe: 7,12,17,24

Lifting speed (m/min): 0~1.3(adjustable)/8/18/27

Основная информация

Сертификация: ISO9001

Оплата и доставка Условия

Packaging Details: standard exported package

Supply Ability: 50 Set/Sets per Month

Характер продукции

SJW-60 china soil sand construction hydraulic jet grouting drilling rig with 20m tower

Specification

Specifications	SJW-60
Hole depth(m)	50
Rod diameter(mm)	φ73,φ89
Hole angle(°)	0~90
Rotary speed(r/min)	0~20,25,50,60,125
Max torque (N.m)	7000
Power head feeding stroke (mm)	4000
Length of Joint pipe	7,12,17,24
Lifting force (kN)	66
Lifting speed (m/min)	0~1.3(adjustable)/8/18/27
Feeding force (kN)	33
Feeding speed (m/min)	1.3~2.6
Diesel or Electric engine is alternative Electric engine Diesel engine	82 45+15
Jet-grouting	Single, double, triple
Digital readout(monitor)	Without monitor

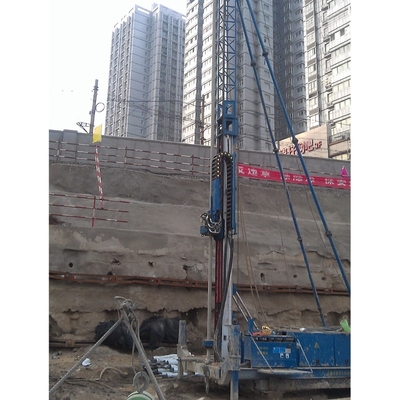

Construction Site

Product Show

Feature&Technology

Production Flow

You May Like

About us

Wuxi AnTian Trading Co.,Ltd. is a construciton machinery manufacturer which integrates of scientific researching, producing and sales, especially in the R&D and product customization for marketing demands. The drilling rigs are major in foundation construction, including high-speed railway,city subway, tunnel, basement under high-rise buildings, water-proof construction,etc. By different techniques, we have Multifunctional Anchor Drilling Rig (HDL Series), Anchor Drilling Rig(MXL, MX Series), Jet grouting Drilling Rig (SJ, SJL Series), Crawler Pump Truck (CWP Series). All of them are the essential engineering machines in the construction projects.

FAQ:

Q: Are you original manufacturer?
A: Yes, AnTian is manufacture in anchor and jet grouting machinery in China for more than 20years.

Q: Which payment terms are available to us?
A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

Q: Which Incoterms 2010 terms can we work?
A: AnTian is a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.

Q: How long will the delivery time take?
A: Normally it will take about 30-40 days to produce the ordered machines.

Q: How about your sales performance in China?
A: We have more than 1500 active customers in China. The leading market share of same function products in domestic fields.
