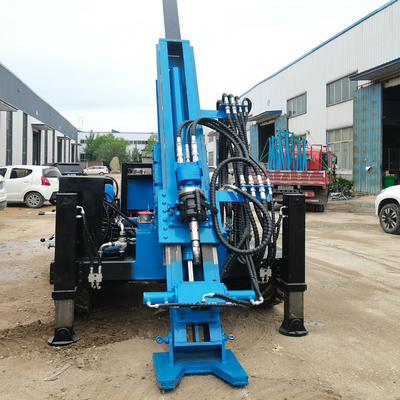

High Drilling Efficiency Earth Reconnaissance Rotary Diamond Drill Rig Hydraulic Core Rig Mining Portable Geotechnical Drill Rig

1 set
MOQ
High Drilling Efficiency Earth Reconnaissance Rotary Diamond Drill Rig Hydraulic Core Rig Mining Portable Geotechnical Drill Rig
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Applicable Industries: Building Material Shops, Manufacturing Plant, Farms, Home Use, Construction works , Energy & Mining, Other
Showroom Location: United States, Pakistan, Chile, South Africa, Kazakhstan, Uzbekistan, Australia
Condition: New
Type: Core Drilling Rig
Power Type: Diesel
Usage: Water Well
Voltage: Customizable
Dimension(L*W*H): 4000*1900*1800 mm
Weight: 4300 KG
Warranty: 1 Year
Marketing Type: New Product 2022
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox, Other
Key Selling Points: Drill anywhere you want to drill
Drilling Diameter: 50mm, 75mm, 60mm
Drilling Depth: 1000m
Mobility: Move by crawler
Product name: Hydraulic Core Drilling Rig
Application: Geological Exploration
Drilling method: Top Drive Hydraulic Rotary Drilling
Rotary speed: 100-300m/min
Engine: Diesel Engine
Feature: High Drilling Efficiency
Keyword: Borehole Core Drilling Machines
Max Drilling Depth: 1500 Meter
Function: Deep Core Drilling Rig
Drill rod length: 1.5m
Основная информация
Оплата и доставка Условия
Packaging Details: Full Container for Full Hydraulic Core Drilling Rig
Supply Ability: 500 Set/Sets per Month
Характер продукции
Full hydraulic geotechnical sampling core drilling rig
Products Description
Full Hydraulic Core Drilling Rig
Full hydraulic core drilling rig is mainly used for geological general investigation and exploration,kinds of hole in concrete structure,road and tall building foundation exploration,river levees,subgrade grouting hole drilling and direct grouting,civil wells and earth temperature central air conditioner,etc. Full hydraulic core drilling rig mainly for wireline exploration such as BQ NQ HQ PQ, depth up to 500m 1000m and 1500m, very popular among exploration companies.
Model
DS-F400
DS-F600
DS-F800
DS-F1000
Drilling Capacity
Depth
400m
600m
800m
1000m
Diameter
75.7mm
75.7mm
75.7mm
75.7mm
Rod length
1.5m
1.5m
1.5m
1.5m
Rod type
NQ
NQ
NQ
NQ
Drilling Head
Torque max
300-500N.M
450-1000N.M
950-1300N.M
1000-3500N.M
Speed max
1300rpm
1300rpm
1300rpm
1300rpm
Feeding length
1.9m
1.9m
1.9m
1.9m
Angle
0-90
0-90
0-90
0-90
Hoist
Lifting power
500Kgs
600Kgs
600Kgs
1000Kgs
Rotary speed
100-240m/min
100-300m/min
100-300m/min
100-300m/min
Wire rope diameter
6mm
6mm
6mm
6mm
Wire rope length
500m
600m
800m
1000m
Hydraulic system
Rated Pressure
21Mpa
21Mpa
25Mpa
28Mpa
Rated flow
168L/min
192L/min
260L/min
300L/min
Hydraulic mud pump
Flow
90L/min
90L/min
160L/min
160L/min
Pressure
4-7Mpa
4-7Mpa
4-7Mpa
4-7Mpa1.5
Other Parameters
Diesel engine
78KW
92KW
96KW
154KW
Dimension
4*1.9*1.8M
4*2*1.8M
5.5*2.1*2M
6*2.2*2.4M
Weight
4.3T
5.5T
6.5T
7.5T

Advantages

1. Telescopic mast to the ground, drilling stability is strong. 2. Drill tower straight angle dual-purpose, can meet 0-90 hole drilling needs. 3. Remote control walking , unloading truck time-saving labor-saving and safety. 4. Wireline Diamond coring technology has the advantages of large core diameter, low drilling resistance and high rate of fast coring. 5. Imported power head, high speed, stable work, easy to operate and safe, easy to achieve automation and instrumentation.
Successful Project
Company Profile
Henan Disy Machinery Co., Ltd. mainly provides holistic drilling solutions, serving the mining, water conservancy drilling industry, to help you solve the problem of drilling at high efficiency and low cost. We mainly provide mobile air compressors, drilling rigs, hammer, drill bit, underground water detector.We are your trustworthy partner.
Sales and Service Network
Our Services
1. Good quality control. 2. Highly competitive prices. 3. State-of-art technology products. 4. Our well drilling rig sales in China first, China's largest well drilling rig manufacturer. 5. Smooth communication.
FAQ
Q1: Are you a factory or trade company? A1: We are an integration of industry and trade. Q2: Warranty terms of your machine? A2: 24 months for the whole machine, 36 months for air end, technical support for life. Q3: How long is your delivery? A3: 25-30 days after receiving your 30% down payment. Q4: What is the MOQ? A4: 1 PC. Q5: Can you accept OEM orders? A5: Yes, with a professional design team, OEM orders are highly welcome. Q6: Can you accept color customization? A6: Yes we can. Q7: Will you provide some spare parts for the drilling rig machine? A7: Yes, of course. Q8: What's your factory's production capacity? A8: About 500 units per month.Thank you.
