Характеристики

Applicable Industries: Farms, Construction worksÂ , Energy & Mining, water

Showroom Location: None

Condition: New

Type: Rotary Drilling Rig

Power Type: Diesel

Usage: Water Well

Voltage: Three-phase

Dimension(L*W*H): 12*2.5*3.5m

Weight: 25t

Warranty: 1 Year

Marketing Type: Ordinary Product

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: 1 Year

Core Components: Motor, Engine

Key Selling Points: Flexible Manufacturing

After-sales Service Provided: Engineers available to service machinery overseas, Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service

control: PTO

drive form: 6*4 or 6*6

generator: 30kw

air compressor&dth: can

Local ServiceÂ Location: None

Сертификация: ISO9001:2008

Основная информация

Сертификация: ISO9001:2008

Оплата и доставка Условия

Packaging Details: exprot packig

Supply Ability: 3 Set/Sets per Month

Характер продукции

Technical parameter
Drilling depth(M)		400
Drilling diameter(mm)		500
Speed of turntable(r/min)		21.2;36;63.2;100.6;155;20.2(reverse)
Torque of turntable(KN.m)		18;10.6;6;3.8;2.5;18.9(reverse)
Single rope lifting capacity of windlass(KN)		45
The lifting capacity of hook(KN)		270
Bearing capacity of mast (KN)		270
The height of mast (mm)		11500
Bearing capacity (t)		30
Pipe	Kelly bar(mm)	108×108×7500
Pipe	Assistant pipe (mm)	89×10×5500
Hydraulic pump	Model	CB-HP80/40
	Pump delivery (ml/r)	80/40
	Rated speed (r/min)	2000
	Rated pressure(MPa)	20
BW850/2A plunger pump	Diameter of cylinder (mm)	150
	Stroke of piston (mm)	180
	Theory of flow (L / min)	600 850
	Rated pressure (Mpa)	3 2
	Pounding times (min^-1)	58 82
	Diameter of suction tube (mm)	127
	Diameter of drain pipe (mm)	64
	Input speed (r / min)	470
	Input power (kw)	40
	Overall dimensions (mm)	200010301400
	Weight (t)	1.5

Our Services

Packaging & Shipping

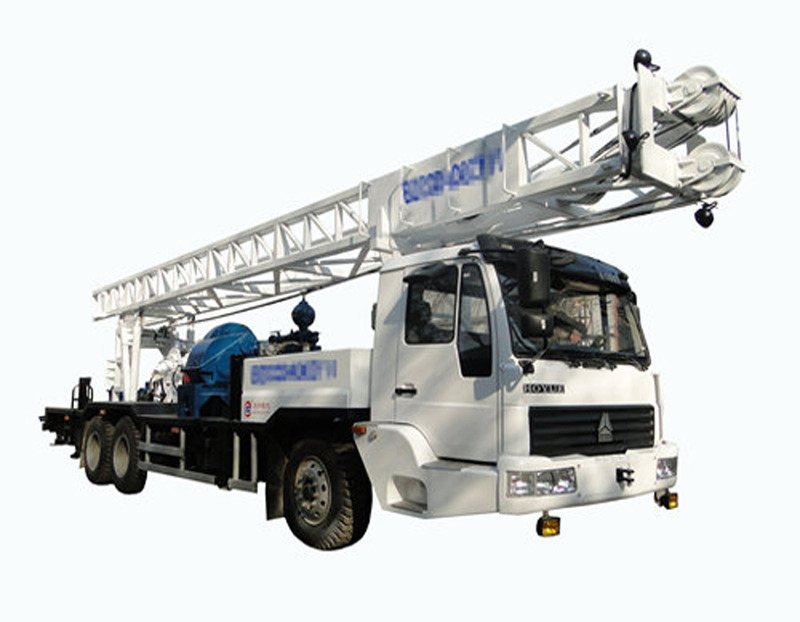

Farms HOWO 400m truck mounted hydraulic water well drilling rig
